Mapping Transmission and Distribution Lines with Fixed-wing Lidar Systems

Ayres Associates is mapping transmission lines in the Rocky Mountains of Colorado through the use of fixed-wing Lidar systems.  Poles, conductors, and utility structures are being extracted from high density Lidar point clouds and modeled as vectors in a geodatabase.

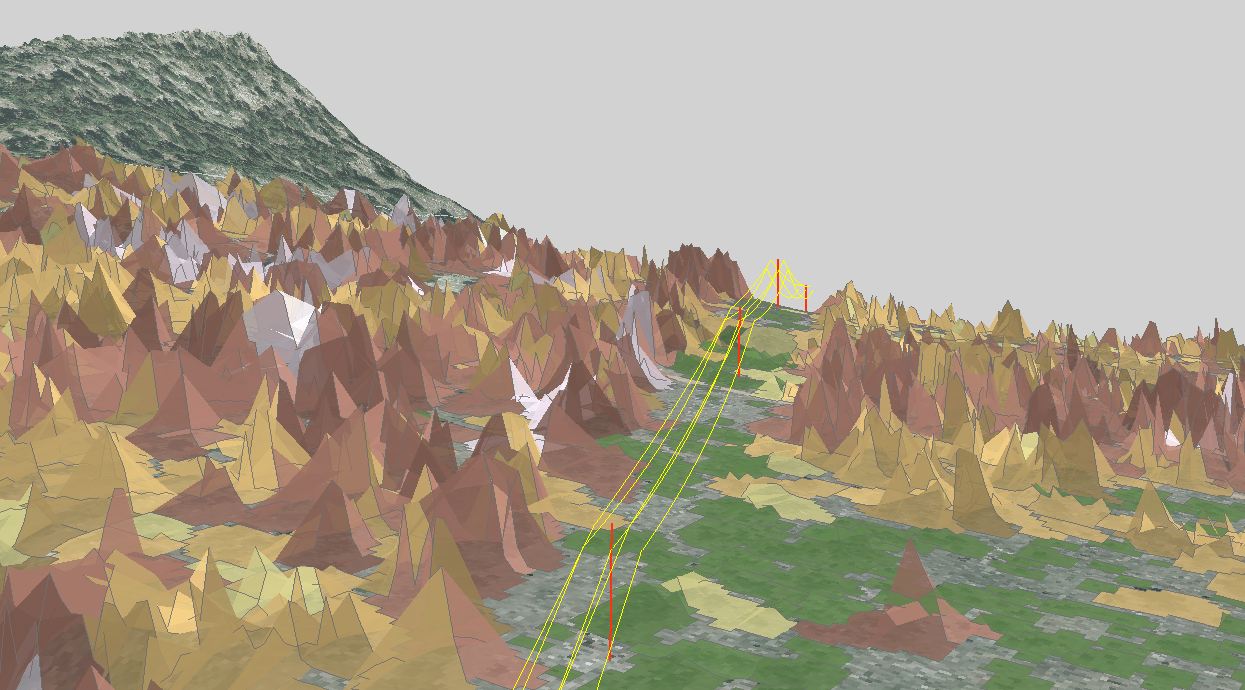

Much of the focus on as-built transmission surveys over the past few years has been on 100kV+ networks.  The most efficient means of surveying and modeling these lines has been through the use of helicopter-based systems.  These systems are capable of achieving the accuracy needed for electrical engineering design and maintenance.  These surveys tended to be long corridors with meanders that can be easily followed by helicopters.Wires1

Since much of the 100kV+ lines have been surveyed, the focus is shifting towards collecting and analyzing information about lower voltage transmission and distribution lines. This information is being used for a variety of applications, including asset inventories, assessing encroachment, and wildfire mitigation.

Although these types of surveys do not always require the same accuracy achieved using helicopter lidar, it does require a sufficient density of points in order to extract poles, conductors, and other important information.   Until relatively recently, there were few fixed-wing aerial Lidar systems capable of supporting the necessary point density – with any sort of efficiency.  However, there are several new multi-pulse systems manufactured today that capable of collecting sufficient density over wide areas.

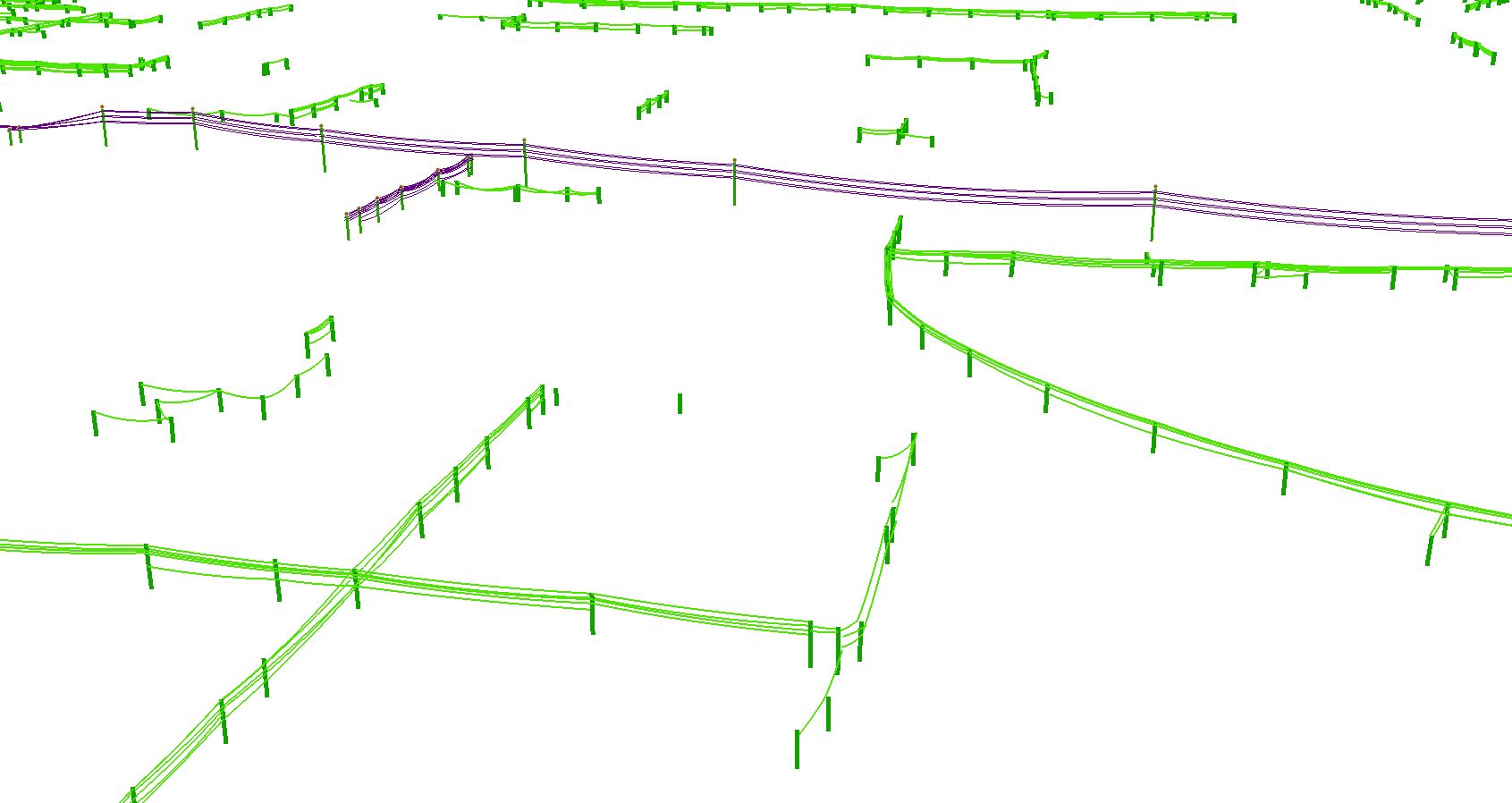

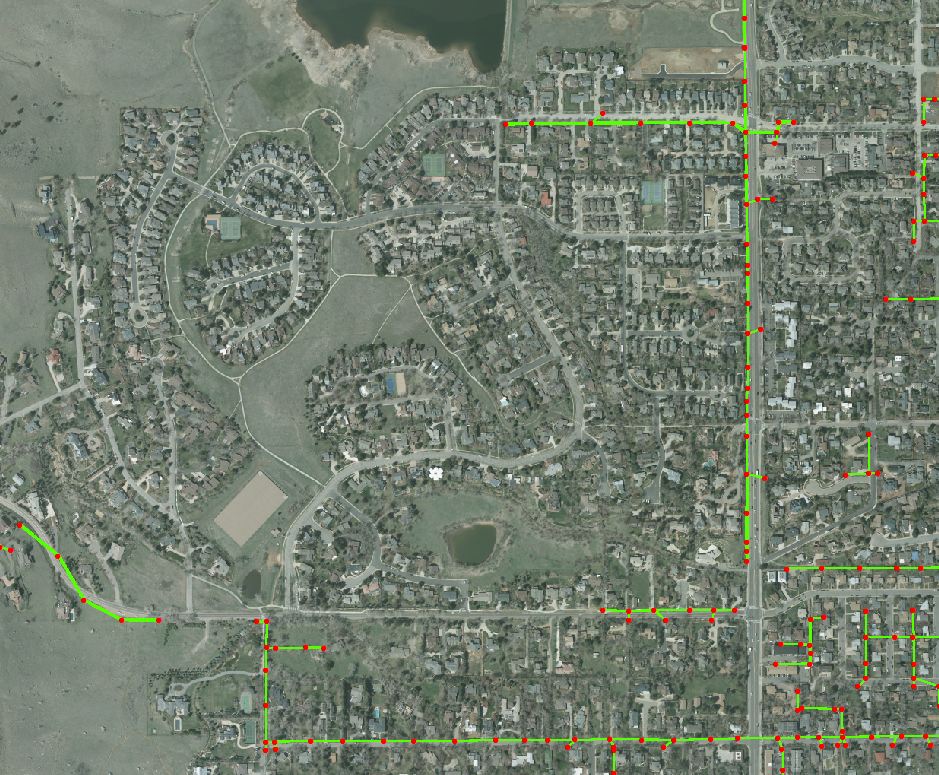

Wires6 Wires5

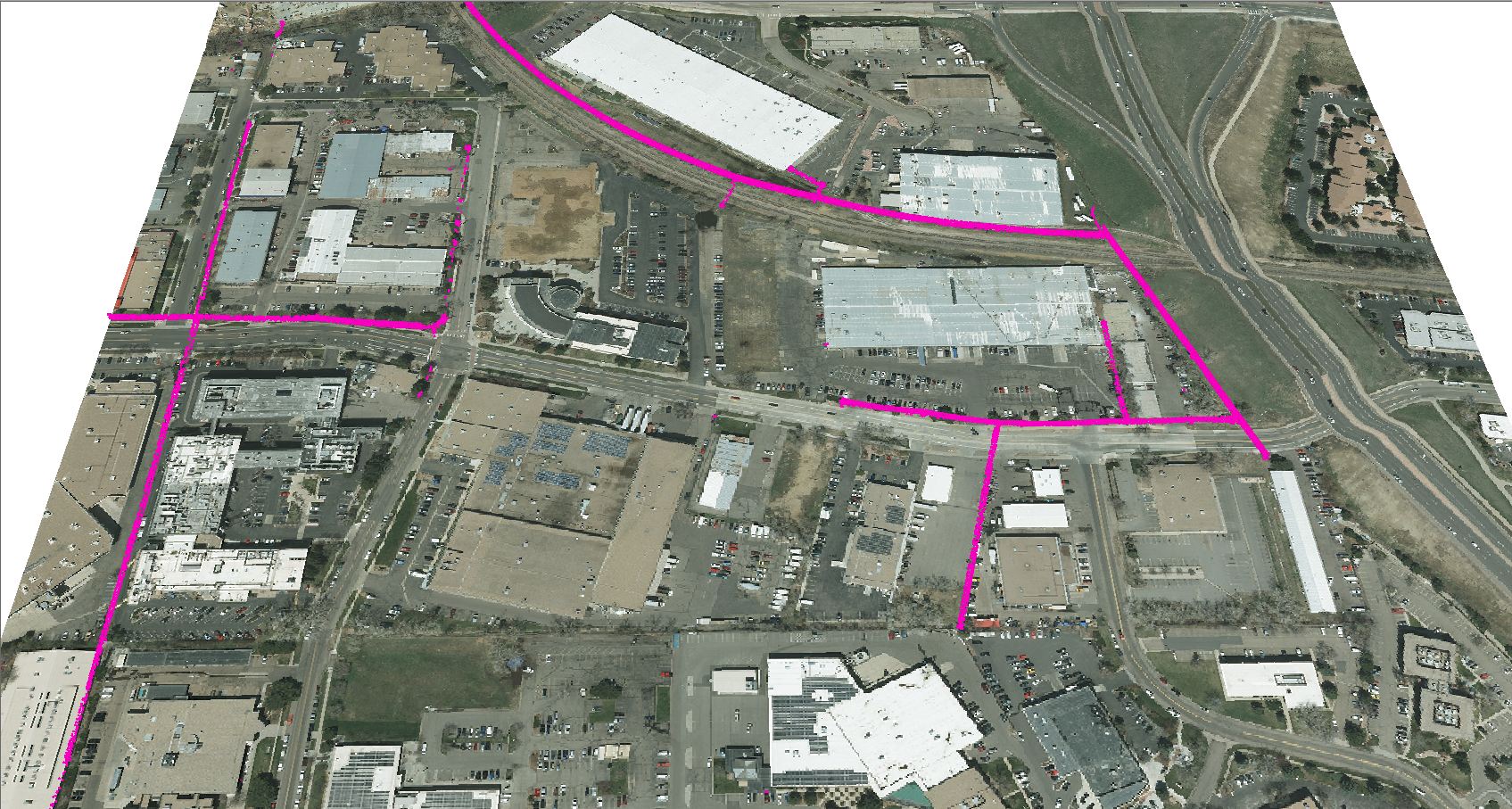

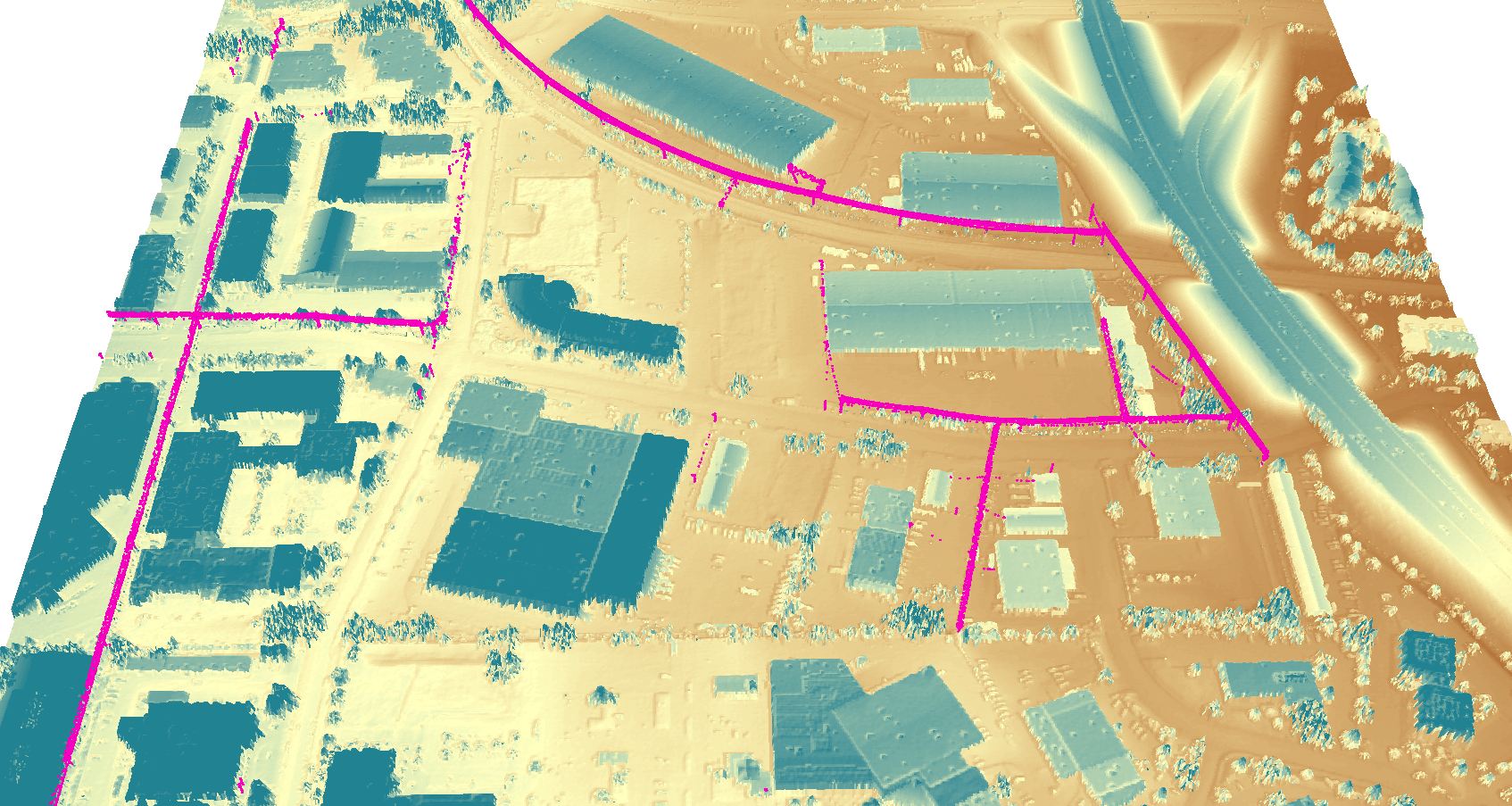

Wires4 Wires3
